Introduction

Connect More, Cover Everything.

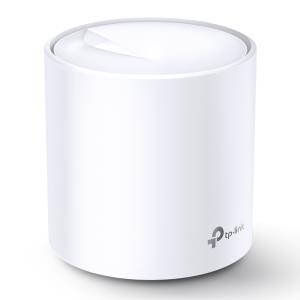

AX3000 Whole Home Mesh Wi-Fi System

Game-Changer: WiFi 6 Mesh

Armed with WiFi 6 technology, Deco whole home mesh WiFi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.

Seamless Roaming with One WiFi Name

TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.

6 Streams: Greater Experience, Less Lag

With six simultaneous data streams, there’s more than enough bandwidth for connected devices. This means to enjoy more responsive gaming or 8K streaming with flawless video and clear audio even when multiple devices transmitting data at the same time.

Your Home, Our Care

Customize your home network with enhanced security using a kit of features built in TP-Link HomeCare. Whether protecting your sensitive data or limiting the access of kids and guests, HomeCare provides you the tools you need to fully manage your network.

Setup Just Got a Lot Easier

Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
- Connect Deco to your cable modem and power on both devices
- Download and launch the Deco app; just follow the in-app directions to finish the setup steps
- Simply power on the next Deco; it will automatically join the network

Easy Management

Manage your WiFi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.

Voice Control

Pair with Alexa to control Deco X60 with simple voice commands. Enjoy the convenient life.

All Decos Work Together

Deco X60 is compatible with every other Deco model to form a mesh network. Expand mesh WiFi coverage anytime by simply adding more Decos.

Decorate Your Home

The pure white design, simple but all-embracing, evokes a wintery mood or a bright summer day. Deco X60 with a delicate body case makes it perfect to blend into various home decorations.

Features

Band steering

Yes

Quality of Service (QoS) support

Yes

Port forwarding

Yes

Firewall security

SPI

BeamForming

Yes

Number of guest networks (5 GHz)

1

Number of guest networks (2.4 GHz)

1

Mobile operating systems supported

Android 4.4, Android 5.0, Android 6.0, Android 7.0, Android 8.0, Android 9.0, iOS, iOS 10.0, iOS 11.0, iOS 12, iOS 13, iOS 9.0

Parental control

Yes

Technical details

Sustainability compliance

Yes

Harmonized System (HS) code

85171800

Compliance certificates

RoHS, CE

Weight & dimensions

Package width

220 mm

Package depth

194 mm

Package height

125 mm

Package weight

1.21 kg

Width

110 mm

Depth

110 mm

Height

114 mm

Design

Housing colour

White

LED indicators

Power, Status

Antenna type

Internal

Antennas quantity

4

Reset button

Yes

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Certification

FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC

Wireless LAN features

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rate (first band)

574 Mbit/s

WLAN data transfer rate (second band)

2402 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security algorithms

WPA2-PSK, WPA3, WPA, WPA2

Point-to-point protocol over Ethernet (PPPoE)

Yes

Dynamic IP

Yes

Static IP

Yes

Dynamic DNS (DDNS)

Yes

Guest access

Yes

Protocols

DHCP client

Yes

DHCP server

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Ethernet WAN

Yes

DC-in jack

Yes

Power

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

AC adapter input current

0.8 A

AC adapter output voltage

12 V

AC adapter output current

1.5 A

Packaging content

Number of products included

1 pc(s)

AC adapter included

Yes

Number of adapters included

1 pc(s)

Ethernet cable

Yes
