Introduction

Sharper Vision,
Smarter Protection

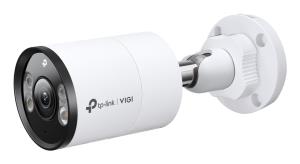

5MP Outdoor Full-Color Bullet Network Camera

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.?

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Maximum operating distance

120 m

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Dynamic range

120 dB

Design

Form factor

Bullet

Mounting type

Wall

Product colour

White

Housing material

Metal

Protection features

Waterproof

International Protection (IP) code

IP67

Weatherproof

Yes

Camera

Minimum illumination

0 lx

Lens viewing angle, horizontal

52.7°

Lens viewing angle, vertical

31.3°

Lens viewing angle, diagonal

67.2°

Tilt angle range

0 - 90°

Camera shutter speed

1/3 to 1/10000

Image sensor

Optical sensor size

25.4 / 2.7 mm (1 / 2.7")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Detect distance

120 m

Observe distance

50 m

Recognize distance

24 m

Fixed focus

Yes

Maximum aperture number

1.6

Identify distance

12 m

Fixed focal length

6 mm

Night vision

Night vision

Yes

LED type

IR/White

Video

Maximum resolution

2880 x 1620 pixels

Total megapixels

5 MP

Video compression formats

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620

Video recording

Yes

Image quality adjustment

Brightness, Contrast, Mirror, Saturation, Sharpness

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps

Back Light Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Audio

Built-in speaker(s)

Yes

Audio system

2-way

Audio input channels

1 channels

Audio output channels

1 channels

Audio formats supported

G.711 A-law

Sample rate

8 kHz

Built-in microphone

Yes

Number of microphones

1

Bit rate range

0 - 64 Kbit/s

Network

Ethernet LAN

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Wi-Fi

No

Bluetooth

No

SIM card slot

Yes

SIM card type

MicroSIM

Live view

Yes

Storage

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Security

Built-in siren

Yes

Password protection

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Detection distance

120 m

Alert notification type

Push notification

Motion sensor

Yes

Mirror

Yes

Human and vehicle targets classification

Yes

Digest authentication

Yes

Management features

Web-based management

Yes

Web browser

Yes

Cloud-managed

Yes

Reset button

Yes

Power

Power source type

DC, PoE

Power consumption (max)

9.7 W

Power consumption (Power over Ethernet (PoE))

10.7 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

74 mm

Height

74 mm

Length

184 mm

Weight

525 g

Packaging content

Number of cameras

1

Mounting kit

Yes

Screws included

Yes

Drilling template included

Yes

Manual

Yes
