Introduction

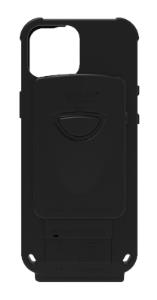

DuraSled DS840 for Apple

The DuraSled DS840 reads printed or on-screen barcodes. It is easy to use and ideal for delivery services, asset tracking, ticketing, and other application-driven mobile solutions. Its durable case protects phones from drop damage and provides a robust, versatile charging solution suitable for all workplace environments. Simply insert your iPhone, pair your scanner and you are ready to go. This makes it easy for workers to mix and match DuraSled solutions for iPhones, all while using the same accessories and SDK. The core components don’t change when switching to a new iPhone model, enabling users to maintain their mobile deployment investments for a relevant number of years. The CaptureSDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.

Scanning

Type

Smartphone barcode reader

Scanner type

1D/2D

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, Matrix 2 of 5, UPC-A, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code

Light levels (direct sunlight)

0 - 100000 lx

Ports & interfaces

Connectivity technology

Wireless

Standard interfaces

Bluetooth

Wireless range

10 m

Bluetooth version

2.1+EDR

Performance

Housing material

Rubber

Protection features

Drop proof

LED indicators

Yes

Product colour

Black

Power

Power source type

Battery

Battery technology

Lithium Polymer (LiPo)

Number of batteries supported

1

Battery capacity

700 mAh

Battery voltage

3.7 V

Number of reads per charge

10000

Battery life

11 h

Charging time

8 h

Weight & dimensions

Width

71.6 mm

Depth

7.8 mm

Height

147.6 mm

Weight

113.5 g

Packaging data

Cables included

USB

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Technical details

Sustainability compliance

Yes

Compliance certificates

RoHS
