Introduction

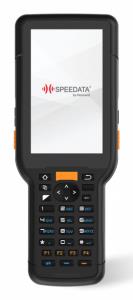

HT35 Leo II
Speedata
Embodying the ‘less is more’ motto, the HT35 Leo II is a reliable mobile scanning solution that suits every type of budget. Its ergonomic design and keyboard fit right at home in your warehouse or as part of your logistical process.
Durable Design with Ergonomic Pistol Grip Included
The megapixel imager allows you to scan both 1D and 2D barcodes with ease, making it the versatile mobile computer you have been looking for. The HT35 Leo II takes user comfort to the next level.
Display
Display diagonal
10.2 cm (4")
Display resolution
1280 x 720 pixels
Touchscreen
Yes
Touchscreen type
Capacitive
Memory
Internal memory
2 GB
Flash memory
16 GB
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
32 GB
Processor
Processor frequency
1.5 GHz
Number of cores
2
Network
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth
Yes
Bluetooth version
4.1
Bluetooth Low Energy (BLE)
Yes
Internal modem
Yes
SIM card type
MiniSIM + MicroSIM
Data network
2G, 3G, 4G
Networking standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Near Field Communication (NFC)
Yes
GPS Performance
GPS (satellite)
Yes
Assisted GPS (A-GPS)
Yes
GLONASS
Yes
Camera
Built-in camera
Yes
Rear camera resolution (numeric)
8 MP
Auto focus
Yes
Built-in flash
Yes
Sensor type
CMOS
Audio
Built-in microphone
Yes
Speakers
Yes
Ports & interfaces
Micro-USB 2.0 ports quantity
1
Headphone connectivity
3.5 mm
Performance
Product colour
Black
RFID reader
Yes
Scanner type
1D/2D
2D (matrix & stacked) barcodes supported
Code 39, Data Matrix, PDF417, QR Code
Vibrating alert
Yes
LED indicators
Yes
International Protection (IP) code
IP65
Drop proof
Yes
Drop proof
1.5 cm
Certification
CE RED, FCCID, RoHS, IEC6247
Software
Operating system installed
Android
Operating system version
8.1
Bundled software
Ndevor, SOTI, Airwatch
Power
Battery capacity
4500 mAh
Battery voltage
3.8 V
Battery life (max)
10 h
Battery recharge time (off)
5 h
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
AC adapter output voltage
5 V
AC adapter output current
2 A
Weight & dimensions
Weight
265 g
Width
78.5 mm
Depth
155 mm
Height
20.5 mm
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-20 - 55 °C
Storage temperature (T-T)
-40 - 70 °C
Technical details
Electrostatic Discharge (ESD) protection (air)
15 kV
Electrostatic Discharge (ESD) protection (contact)
8 kV
Keypad number of keys
10
