Introduction

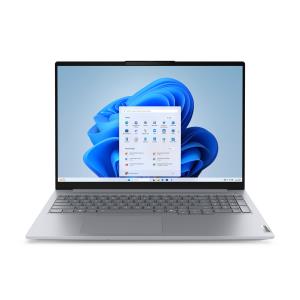

ThinkBook 16 G8 IRL

This laptop is engineered for professionals who demand performance on the go. With up to 14th Gen Intel® Core™ 7 processors and 64GB of DDR5 memory, it handles multitasking and data analysis with ease. Its 2TB SSD storage provides ample space for large files, ensuring quick access without external drives. Thunderbolt 4 / USB4 ports offer fast data transfer and connectivity, essential for seamless integration of peripherals. Perfectly crafted to enhance productivity and efficiency wherever work takes you.

Design

Colour name

Arctic Grey

Product type

Laptop

Product colour

Grey

Form factor

Clamshell

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Display

Display diagonal

40.6 cm (16")

Display resolution

1920 x 1200 pixels

Touchscreen

No

HD type

WUXGA

Panel type

IPS

LED backlight

Yes

Native aspect ratio

16:10

Anti-glare screen

Yes

Display brightness

300 cd/m²

RGB colour space

NTSC

Colour gamut

45%

Maximum refresh rate

60 Hz

Processor

Processor manufacturer

Intel

Processor family

Intel Core 5

Processor generation

Intel Core (Series 2)

Processor model

210H

Processor cores

8

Processor threads

12

Processor boost frequency

4.8 GHz

Performance cores

4

Efficient cores

4

Performance-core Max Turbo Frequency

2.2 GHz

Efficient-core Max Turbo Frequency

3.6 GHz

Performance-core base frequency

2.2 GHz

Efficient-core base frequency

1.6 GHz

Processor cache

30 MB

Processor cache type

Smart Cache

Processor base power

45 W

Maximum turbo power

115 W

Memory

Internal memory

16 GB

Internal memory type

DDR5-SDRAM

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Memory layout (slots x size)

1 x 16 GB

Memory slots

2x SO-DIMM

Maximum internal memory

64 GB

Storage

Total storage capacity

512 GB

Storage media

SSD

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD capacity

512 GB

SSD interface

PCI Express 4.0

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Optical drive type

No

Card reader integrated

Yes

Compatible memory cards

SD

Graphics

Discrete graphics card model

Not available

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card

No

On-board graphics card family

Intel Graphics

On-board graphics card model

Intel Graphics

Audio

Audio chip

Realtek ALC3287

Audio system

Dolby Audio

Number of built-in speakers

2

Speaker power

2 W

Built-in microphone

Yes

Number of microphones

2

Camera

Front camera

Yes

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Infrared (IR) camera

Yes

Privacy camera

Yes

Privacy type

Privacy shutter

Network

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Mobile network connection

No

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

100,1000 Mbit/s

Bluetooth

Yes

Bluetooth version

5.3

WWAN

Not installed

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB4 Gen 2x2 ports quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB Type-C DisplayPort Alternate Mode

Yes

USB Sleep-and-Charge

Yes

USB Sleep-and-Charge ports

1

Performance

Motherboard chipset

Intel SoC

Keyboard

Pointing device

Touchpad

Keyboard language

Swiss

Numeric keypad

Yes

Keyboard backlit

Yes

Spill-resistant keyboard

Yes

Copilot key

Yes

Software

Operating system architecture

64-bit

Operating system language

German, Dutch, English, French, Italian

Trial software

Office

Operating system installed

Windows 11 Pro

Battery

Battery technology

Lithium Polymer (LiPo)

Battery capacity

45 Wh

Power

AC adapter power

65 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100 - 240 V

USB Type-C charging port

Yes

USB Power Delivery (USB PD)

Yes

Security

Cable lock slot

Yes

Cable lock slot type

Kensington

Fingerprint reader

Yes

Face recognition

Yes

Windows Hello

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Password protection

Yes

Password protection type

BIOS, SSD, Supervisor, User

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3048 m

Certificates

Compliance certificates

RoHS, TÜV mark

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT Gold, ErP, TCO

Weight & dimensions

Width

356 mm

Depth

253.5 mm

Height

17.5 mm

Weight

1.7 kg

Packaging content

AC adapter included

Yes
