Introduction

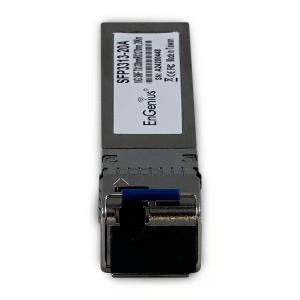

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

LC

Maximum transfer distance

20000 m

Tx wavelength (max)

1330 nm

Rx wavelength (max)

1270 nm

Ethernet LAN

Yes

Ethernet interface type

10 Gigabit Ethernet

Networking standards

IEEE 802.3az

Features

Product colour

Grey

Hot-swap

Yes

Power

Input voltage

3 - 3.6 V

Maximum voltage

3.6 V

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 70 °C

Storage temperature (T-T)

-40 - 85 °C

Weight & dimensions

Width

14 mm

Depth

57.5 mm

Height

10.8 mm

Weight

25 g
