Introduction

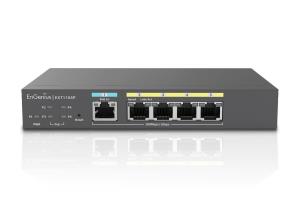

EnGenius Switch Extender, EXT1105P is a reliable 4-Port GE PoE and 1-Port GE PD PoE switch that takes your network efficiency to the next level. With its optimized Voice-VLAN feature, this switch is perfect for small businesses looking to enhance network performance while reducing expenses. The zero-touch provisioning and easy-to-use cloud-based management provide SMBs with a hassle-free network solution.
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.1p, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3u
10G support
No
VLAN support
Yes
Data transmission
Switching capacity
10 Gbit/s
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
15000
Security
Access Control List (ACL)
Yes
IGMP snooping
Yes
Multicast features
Multicast support
Yes
Number of multicast groups filtered
8
Design
Product colour
Black
Reset button
Yes
LED indicators
Power
Performance
Flash memory
32 MB
Power
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
60 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
105 mm
Depth
170 mm
Height
27 mm
Weight
450 g
