Introduction

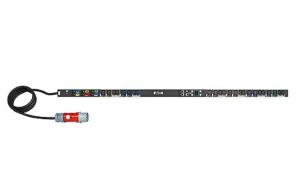

New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

Design

PDU types

Metered

Type

Three-phase

Form factor

Rackmount

Rack mounting

Y

Rack capacity

0U

Mounting

Vertical

Product colour

Black

Cable colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C13 coupler, C19 coupler

Ethernet LAN (RJ-45) ports

1

Output connections

12 x C13 & 12 x C19

Features

LED indicators

Y

Cable length

3 m

Management features

Management protocols

SNMP, Telnet

Firmware upgradeable

Y

Firmware upgradeable via

Network, USB

Power

Nominal input voltage

400 V

AC input frequency

50 Hz

Maximum current

32 A

Nominal output voltage

230 V

Maximum input current per phase

32 A

Maximum power

22000 W

Weight & dimensions

Width

52 mm

Depth

1604 mm

Dimensions (WxDxH)

52 x 1604 x 53 mm

Height

53 mm

Weight

6.04 kg

Packaging data

Package weight

7.04 kg

Packaging content

Cables included

LAN (RJ-45)

Rack mount kit

Y

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Technical details

Sustainability certificates

RoHS
