Introduction

Efficiency

- Above 96% efficiency in double conversion mode
- Up to 99% efficiency with Energy Saver System

Scalability

- Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
- Paralleling of up to 4 units

Inherent redundancy

- Modular design allows internal redundancy (separate battery configuration also available)

Smallest footprint in the market

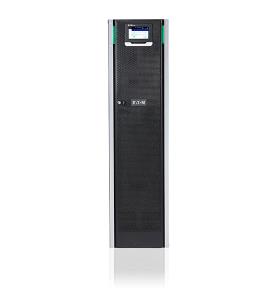

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)

Unity power factor (1.0)

Hot Swap and Hot Scalable

- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load

Super-sized static switch

Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation

Safety

- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional installments

Cloud & Virtualisation ready

- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glass”
- Load shedding – 50% drop in load equates to 250% more runtime!

Features

UPS topology

Double-conversion (Online)

Output power capacity

10 kVA

Output power

10000 W

Waveform

Pure sine

Input operation voltage (min)

380 V

Input operation voltage (max)

415 V

Input frequency

50/60 Hz

Output operation voltage (min)

380 V

Output operation voltage (max)

415 V

Output frequency

50/60 Hz

Number of input phases

3

Number of output phases

3

Efficiency

96%

Power factor

1

Input power factor

0.99

Output power factor

1

Input current Total Harmonic Distortion (THD)

4%

Noise level

60 dB

Power protection features

Overload

Ports & interfaces

USB port

Y

USB 2.0 ports quantity

1

RS-232 ports

1

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

9 Ah

Number of batteries supported

64

Hot-swap battery

Y

Automatic battery test

Y

Design

Form factor

Tower

Product colour

Black

Display type

LCD

LED indicators

Y

International Protection (IP) code

IP20

Safety

IEC 62040-1

Certification

IEC 62040-1, IEC 62040-2, IEC 62040-3

Operational conditions

Operating temperature (T-T)

5 - 45 °C

Weight & dimensions

Width

335 mm

Depth

750 mm

Height

1300 mm

Weight

171 kg

Packaging data

Management card included

Y

Bundled software

Intelligent Power Software suite

Other features

Nominal output voltage

400 V

Nominal input voltage

400 V
