Introduction

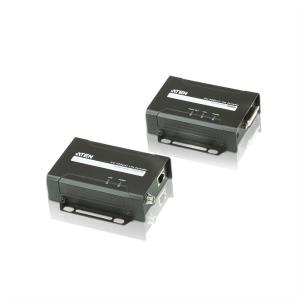

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

- HDBaseT Connectivity - extends a DVI connection up to 70 meters via a single Ethernet cable
- HDBaseT Anti-Jamming - resists signal interference during video transmission using HDBaseT technology
- Rack-Mountable

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1200 pixels

Cable types supported

Cat5e,Cat6,Cat6a

Maximum transfer distance

70 m

Supported graphics resolutions

1920 x 1200 (WUXGA)

Bandwidth

340 MHz

HDCP

Y

Material

Metal

Impedance

100 O

Product colour

Black

Ports & interfaces

DVI input ports

1

DVI output ports

1

DC-in jack

Y

Power

AC input frequency

60 Hz

Operating voltage

5 V

Power consumption (transmitter) (max)

1.85 W

Power consumption (receiver) (max)

4.23 W

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Receiver dimensions (WxDxH)

87 x 103 x 30 mm

Receiver weight

250 g

Transmitter dimensions (WxDxH)

87 x 103 x 30 mm

Transmitter weight

250 g

Packaging content

Manual

Y
