Introduction

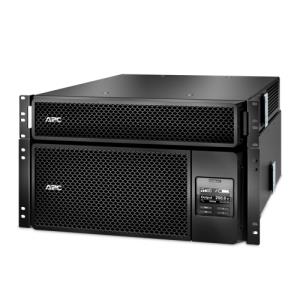

APC Smart-UPS SRT 6000VA RM with 208V to 120V 2U Step-Down Transformer

High density, double-conversion on-line power protection with scalable runtime
Includes : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , Temperature Probe , USB cable , Warranty card , Web/SNMP Management Card
- 10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Hard Wire Input
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
- LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Features

UPS topology

Double-conversion (Online)

Output power capacity

6 kVA

Output power

6000 W

Waveform

Sine

Input operation voltage (min)

100 V

Input operation voltage (max)

275 V

Input frequency

40 - 70 Hz

Output operation voltage (min)

120 V

Output operation voltage (max)

208 V

Output frequency

50/60 Hz

Surge energy rating

480 J

Crest factor

3:1

Emergency Power Off (EPO)

Yes

Output voltage Total Harmonic Distortion (THD)

2%

Noise level

55 dB

Surge protection

Yes

Audible alarm(s)

Yes

Auto-restart

Yes

Ports & interfaces

AC outlet types

NEMA 5–20R, NEMA L6-20R, NEMA L6-30R

AC outlets quantity

17 AC outlet(s)

USB port

Yes

Serial interface

Yes

Serial interface type

RJ-45

Ethernet LAN (RJ-45) ports

1

Cabling technology

10/100Base-T

SmartSlot

Yes

Battery

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

875 VAh

Battery life (max)

5 year(s)

Battery recharge time

1.5 h

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

Replacement battery cartridge

APCRBC140

Design

Form factor

Rackmount/Tower

Rack capacity

6U

Product colour

Black

Display type

LCD

International Protection (IP) code

IP20

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Certificates

Compliance certificates

RoHS

Certification

CSA C22.2 No.107.3-05, FCC Part 15 Class A, UL 1778, REACH

Packaging content

Rack mount kit

Yes

Cables included

USB cable

Manual

Yes

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

432 mm

Depth

719 mm

Height

263 mm

Weight

104.3 kg

Packaging data

Bracket

Yes

Temperature sensor

Yes

Resource CD

Yes

Warranty card

Yes

Package width

622 mm

Package depth

960 mm

Package height

624 mm

Package weight

117.9 kg

Logistics data

Products per pallet

6 pc(s)
