Introduction

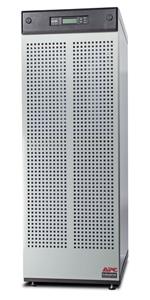

AIS 3000, 20000VA/16000W, Input 400V 3PH/Output 230V, Extended runtime model
Includes:
- Battery modules ship installed
- Bolt down brackets
- CD with software
- Installation guide
- Power modules ship installed
- Smart UPS signalling RS-232 cable
- Start up included
- User Manual
- Web/SNMP Management Card

Features

Output power capacity

20 kVA

Output power

16000 W

Emergency Power Off (EPO)

Yes

Audible alarm(s)

Yes

Battery

Typical backup time at full load

18.3 min

Typical backup time at half load

46.8 min

Weight & dimensions

Weight

656 kg

Other features

Output connections

- (1) H N + G

Input connection type

3PH + N + G

Dimensions (WxDxH)

523 x 854 x 1500 mm

Nominal output voltage

230 V

Output voltage note

220: 230 or 240

Nominal input voltage

400 V
