Introduction

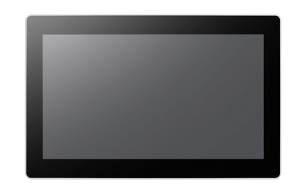

UTC-318F is the multi-purpose all-in-one computing system which equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. With the removable frame, the system also could fulfill industries or control system applications with panel mounting design. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

Display

Display diagonal

47 cm (18.5")

Display resolution

1366 x 768 pixels

Touchscreen

Yes

Display type

TFT

Display brightness

250 cd/m²

Touchscreen technology

Projected capacitive system

Viewing angle, horizontal

170°

Viewing angle, vertical

160°

Aspect ratio

16:9

Display number of colours

16.78 million colours

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

6th gen Intel® Core™ i5

Processor model

i5-6300U

Processor cores

2

Processor threads

4

Processor frequency

2.4 GHz

Processor cache

3 MB

System bus rate

4 GT/s

Memory

Internal memory

4 GB

Internal memory type

DDR4-SDRAM

Maximum internal memory

16 GB

Number of memory slots

1

Memory slots type

SO-DIMM

Memory clock speed

2133 MHz

Storage

Total storage capacity

64 GB

Storage media

SSD

SSD capacity

64 GB

Graphics

Graphics card manufacturer

Intel

Graphics card

HD Graphics 520

Multimedia

Built-in speaker(s)

Yes

Number of speakers

2

Audio system

Stereo

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

Line-out

Yes

Microphone in

Yes

Serial ports quantity

2

RS-232 ports

1

RJ-11 ports quantity

1

Design

Chassis type

All-in-One

Product colour

Black

Software

Operating system installed

Windows 10 IoT

Power

AC adapter output voltage

12 - 30 V

AC adapter output current

7 A

Power supply

84 W

Power consumption (typical)

32 W

Operational conditions

Operating relative humidity (H-H)

10 - 95%

Operating temperature (T-T)

0 - 40 °C

Ergonomics

Wall mountable

Yes

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Weight & dimensions

Width

475 mm

Depth

43.5 mm

Height

295 mm

Weight

5 kg

Packaging data

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

84715000
