Introduction

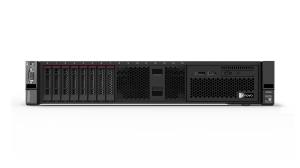

The Lenovo ThinkSystem SR665 is a 2-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the new PCIe 4.0 standard for I/O, the SR665 offers the ultimate in two-socket server performance in a 2U form factor.

This product guide provides essential pre-sales information to understand the ThinkSystem SR665 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR665 and consider its use in IT solutions.

Processor

Processor manufacturer

AMD

Processor family

AMD EPYC

Processor model

7413

Processor frequency

2.65 GHz

Processor boost frequency

3.6 GHz

Processor cores

24

Processor cache

128 MB

Number of processors installed

1

Thermal Design Power (TDP)

180 W

Processor threads

48

Memory

Internal memory

64 GB

Internal memory type

DDR4-SDRAM

ECC

Yes

Memory layout (slots x size)

1 x 64 GB

Storage

RAID support

Yes

RAID levels

0, 1, 5, 6, 10, 50, 60

Supported RAID controllers

9350-8i

Optical drive type

No

Internal drive bays

8

Graphics

On-board graphics card

No

On-board graphics card model

Not available

Maximum graphics card memory

16 MB

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

VGA (D-Sub) ports quantity

1

Design

Chassis type

Rack (2U)

Product colour

Black, Metallic

Redundant fans support

Yes

Performance

Performance management

XClarity Enterprise

Noise level

46 dB

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

No

Compatible operating systems

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Power

Redundant power supply (RPS) support

Yes

Power supply

1100 W

Operational conditions

Operating temperature (T-T)

5 - 45 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

8 - 90%

Storage relative humidity (H-H)

8 - 90%

Operating altitude

0 - 3050 m

Weight & dimensions

Width

445 mm

Depth

764 mm

Height

87 mm

Weight

38.8 kg

Technical details

Supported storage drives form factor (rear)

2.5''
