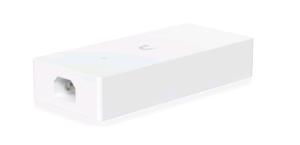

A 120W power adapter for Power TransPortT-compatible devices.
| Mechanical | |
|---|---|
| Dimensions | 169.1 x 75 x 31.6 mm (6.7 x 3 x 1.2") |
| Weight | 448 g (1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Input connector | IEC320 C14 |
| Input voltage | 100—240V AC |
| Input frequency | 50—60Hz |
| Input current | 100V AC, 240V AC / full load ≤ 1.6A |
| Output connector | PowerTransport connector |
| Output voltage | 27V DC |
| Output current | 4.44A |
| Total output power | 120W |
| ESD/EMP protection | Air: ± 10kV, contact: ± 6kV |
| Ambient operating temperature | 0 to 50° C (32 to 122° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC |
