Introduction

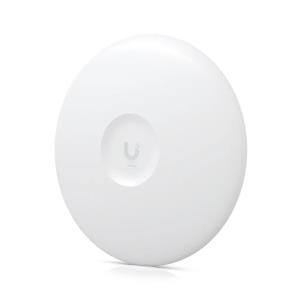

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
Data transmission
Maximum data transfer rate
2500 Mbit/s
Maximum transfer distance
15000 m
Antenna
Antenna design
Internal
Antenna type
Internal
Antenna gain level (max)
46 dBi
Wireless LAN features
Wi-Fi
Yes
Wi-Fi band
Single-band (5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Frequency band
57 - 71 GHz
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Network
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
Networking standards
IEEE 802.11ax
Ports & interfaces
Connectivity technology
Wired & Wireless
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Security
Security algorithms
WPA2-PSK
Features
Product type
Network bridge
Material
Aluminium, Plastic
Mounting type
Pole
Product colour
White
LED indicators
GPS, LAN, Link, Power
Power LED
Yes
Reset button
Yes
International Protection (IP) code
IPX6
Network Time Protocol (NTP) client
Yes
Power
Power source type
DC, PoE
DC input voltage
44 – 54
Power consumption (max)
26 W
Power over Ethernet (PoE)
Yes
DC output voltage
48 V
Operational conditions
Operating temperature (T-T)
-40 - 60 °C
Operating temperature (T-T)
-40 - 140 °F
Operating relative humidity (H-H)
5 - 95%
Certificates
Certification
FCC, IC, CE
Weight & dimensions
Width
424.4 mm
Depth
424.4 mm
Height
166.2 mm
Weight
2.8 kg
Packaging content
Mounting bracket(s) included
Yes
Quick installation guide
Yes
Processor
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor model
ARM Cortex-A53
Processor frequency
1400 MHz
Memory
RAM capacity
512 MB
RAM type
DDR3L
Packaging data
Quantity per pack
1 pc(s)
