Introduction

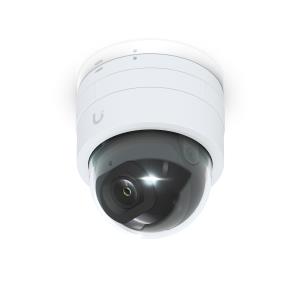

Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.

Performance

Type

IP security camera

Placement supported

Indoor & outdoor

Connectivity technology

Wired

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Processor model

ARM Cortex-A7

Built-in processor

Yes

Design

Form factor

Dome

Mounting type

Ceiling/wall

Product colour

White

Housing material

Aluminium, Polycarbonate (PC), Stainless steel

Protection features

Vandal proof

IK code

IK06

Camera

Lens viewing angle, horizontal

102.4°

Lens viewing angle, vertical

54.9°

Lens viewing angle, diagonal

120.6°

Image sensor

Number of sensors

1

Optical sensor size

25.4 / 2.4 mm (1 / 2.4")

Sensor type

CMOS

Lens system

Number of lenses

1

Night vision

Night vision

Yes

Night vision distance

20 m

LED type

IR

Video

Maximum resolution

2688 x 1512 pixels

Total megapixels

4 MP

Video formats supported

H.264

Frame rate

30 fps

Noise reduction

Yes

Noise reduction technology

2D noise reduction, 3D noise reduction

Image quality adjustment

Brightness, Colour depth, Contrast, DNR, Sharpness

Privacy masking

Yes

Text caption overlay

Yes

Network

Ethernet LAN

Yes

Ethernet interface type

Fast Ethernet

Wi-Fi

No

Bluetooth

No

Storage

Built-in HDD

No

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Management features

Reset button

Yes

Power

Power source type

PoE

AC input voltage

37 - 57 V

Power consumption (typical)

4.2 W

Operational conditions

Operating temperature (T-T)

-20 - 40 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Height

68.2 mm

Diameter

6.36 cm

Weight

175 g

Packaging content

Number of cameras

1

Cables included

LAN (RJ-45)

Mounting kit

Yes

Screws included

Yes

Technical details

Sustainability compliance

Yes

Compliance certificates

CE, Federal Communications Commission (FCC)
