Introduction

See Every Detail Up Close

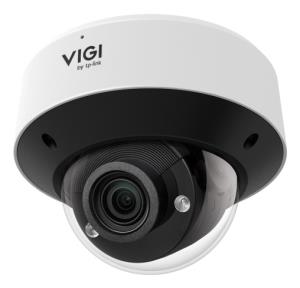

4MP IR Motorized Varifocal Dome Network Camera

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Performance

Type

IP security camera

Placement supported

Outdoor

Connectivity technology

Wired

Maximum operating distance

200 m

Wide Dynamic Range (WDR)

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Remote viewing

Yes

Dynamic range

120 dB

Design

Form factor

Dome

Mounting type

Ceiling

Product colour

White

Housing material

Metal

Protection features

Waterproof

International Protection (IP) code

IP67

IK code

IK10

Weatherproof

Yes

Camera

Camera pan control

Yes

Camera tilt control

Yes

Minimum illumination

0 lx

Lens viewing angle, horizontal

29.6 - 102°

Lens viewing angle, vertical

16.8 - 53.8°

Lens viewing angle, diagonal

34.1 - 122.8°

Tilt angle range

0 - 75°

Camera shutter speed

1/3 to 1/10000

Image sensor

Optical sensor size

25.4 / 2.9 mm (1 / 2.9")

Progressive scan

Yes

Sensor type

CMOS

Lens system

Optical zoom

5x

Detect distance

200 m

Observe distance

84 m

Recognize distance

40 m

Auto focus

Yes

Focus

Motorized

Maximum aperture number

1.6

Identify distance

21 m

Night vision

Night vision

Yes

LED type

IR/White

Video

Maximum resolution

2688 x 1520 pixels

Total megapixels

4 MP

Video compression formats

H.264, H.264+, H.265, H.265+

Supported graphics resolutions

1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520

Video recording

Yes

Image quality adjustment

Brightness, Contrast, Mirror, Saturation, Sharpness

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Bit rate

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264

Back Light Compensation (BLC)

Yes

Highlight Compensation (HLC)

Yes

Digital Wide Dynamic Range (DWDR)

Yes

Audio

Built-in speaker(s)

Yes

Audio system

2-way

Audio input channels

1.0 channels

Audio output channels

1.0 channels

Audio formats supported

G.711 A-law

Sample rate

8 kHz

Built-in microphone

Yes

Number of microphones

1

Bit rate range

0 - 64 Kbit/s

Network

Ethernet LAN

Yes

Networking standards

IEEE 802.3af, IEEE 802.3at

Supported network protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

Wi-Fi

No

Bluetooth

No

Live view

Yes

Storage

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Security

Built-in siren

Yes

Password protection

Yes

Video motion detection

Yes

IP address filtering

Yes

HTTPS encryption

Yes

Detection distance

200 m

Alert notification type

Push notification

Intelligent Video Surveillance (IVS) system features

Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection

Motion sensor

Yes

Mirror

Yes

Human and vehicle targets classification

Yes

Digest authentication

Yes

Management features

Web-based management

Yes

Web browser

Yes

Cloud-managed

Yes

Reset button

Yes

Power

Power source type

DC, PoE

Power consumption (max)

10.8 W

Power consumption (Power over Ethernet (PoE))

12 W

DC output voltage

12

Operational conditions

Operating temperature (T-T)

-30 - 60 °C

Storage temperature (T-T)

-40 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

129.9 mm

Depth

129.9 mm

Height

102.5 mm

Weight

775 g

Packaging data

Package type

Box

Packaging content

Number of cameras

1

Manual

Yes
