Introduction

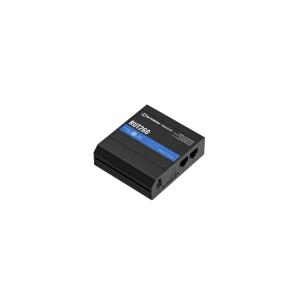

RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.
Design
Device type
Cellular network router
Product colour
Black, Blue
Housing material
Aluminium, Plastic
Mounting
DIN-rail/Wall mounting
Market positioning
Industrial
Suitable for indoor use
Yes
Built-in display
No
LED indicators
LAN, Network, Power, Signal strength, WAN
Ethernet LAN features
Ethernet LAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u
DHCP client
Yes
DHCP server
Yes
Full duplex
Yes
Wireless LAN features
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported
300 Mbit/s
Mobile network
Data network
3G, LTE
Number of SIM cards
1
SIM card type
MiniSIM
Short Message Service (SMS)
Yes
Data transfer rate (LTE) (download)
300 Mbit/s
Data transfer rate (LTE) (upload)
50 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
USB port
No
Security
Security algorithms
AES-CCMP, TKIP, WEP, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE
Network address translation (NAT)
Yes
Firewall
Yes
IP address filtering
Yes
DMZ support
Yes
GPS Performance
Assisted GPS (A-GPS)
No
Embedded GNSS
No
GLONASS
No
BeiDou
No
Galileo
No
Quasi-Zenith Satellite System (QZSS)
No
Electronic compass
No
Performance
Built-in processor
Yes
Processor manufacturer
Mediatek
Processor frequency
0.58 GHz
RAM capacity
0.128 GB
Internal storage capacity
0.016 GB
Operating system installed
RutOS
Web-based management
Yes
GPS (satellite)
No
Antenna type
External
Antenna connector type
SMA/RP-SMA
Antennas quantity
3
Detachable antenna(s)
Yes
Power
Power source type
DC
Built-in battery
No
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
83 mm
Depth
74 mm
Height
25 mm
Weight
130 g
