Introduction

Control an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio

The AVoIP KVM Extender enables remote computer access over a TCP/IP network with a keyboard, mouse, and 4K 60Hz HDMI monitor, keeping systems secure from unauthorized access and physical damage.

Driver-Free Installation

The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.

Scalable, Flexible, and Future-Proof

Designed to grow with your business, the KVM extender supports both one-to-one and one-to-many configurations by adding IP KVM receivers (sold separately), ensuring a flexible and future-ready solution.

Professional-Grade Design

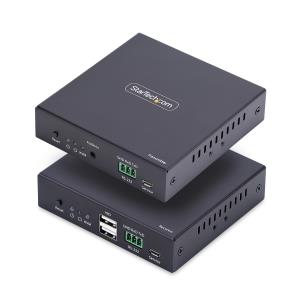

Each unit features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. A local HDMI output on the transmitter allows direct connection to a nearby display, while RS232 and 3.5mm audio passthrough ports enable serial and audio extension.

The StarTech.com Advantage

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Cable types supported

Cat6

Rack mounting

No

Maximum digital resolution

3840 x 2160 pixels

Maximum refresh rate

60 Hz

On Screen Display (OSD)

No

Product colour

Black

LED indicators

Yes

Transmitter

Transmitter video port type

HDMI

Transmitter local video port

Yes

Transmitter local video port type

HDMI

RJ-45 ports quantity (transmitter)

1

Transmitter Micro-USB ports quantity

1

Receiver

Receiver local video port type

HDMI

RJ-45 ports quantity (receiver)

1

Receiver Micro-USB ports quantity

1

Receiver USB Type-A ports quantity

2

Ports & interfaces

USB port type

USB Type-C

USB 2.0 ports quantity

1

HDMI version

2.0

RS-232 ports

2

PC Audio in

Yes

PC Audio out

Yes

Power

Power plug type

Type M

AC input voltage

100 - 240 V

Input current

0.3 A

AC adapter output voltage

5 V

AC adapter output current

2 A

Power consumption (transmitter) (max)

10 W

Power consumption (receiver) (max)

10 W

DC-in jack

Yes

Packaging data

Package width

240 mm

Package depth

176 mm

Package height

80 mm

Package weight

1.1 kg

Packaging content

AC adapter included

Yes

Mounting bracket(s) included

Yes

Included power plug types

ANZ, EU, NA, UK

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

0 - 90%

Other features

Mean time between failures (MTBF)

10000 h

Compliance certificates

Federal Communications Commission (FCC), RoHS

Logistics data

Master (outer) case width

380 mm

Master (outer) case length

270 mm

Master (outer) case height

420 mm

Products per master (outer) case

10 pc(s)
