Introduction

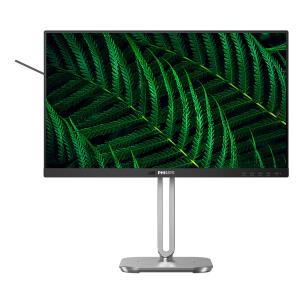

This monitor is built for energy efficiency. With its LightSensor and PowerSensor 2, these two features combine to make a power-saving monitor that is equipped with many other features designed to facilitate work tasks.

Display

Display diagonal

60.5 cm (23.8")

Display resolution

1920 x 1080 pixels

HD type

Full HD

Native aspect ratio

16:9

Display technology

LCD

Panel type

IPS

LED backlight

Yes

Backlight type

W-LED

Touchscreen

No

Display brightness (typical)

300 cd/m²

Response time

4 ms

Response time measurement type

GTG (Gray to Gray)

Anti-glare screen

Yes

Screen shape

Flat

Contrast ratio (typical)

1500:1

Contrast ratio (dynamic)

50000000:1

Dynamic contrast ratio marketing name

SmartContrast

Maximum refresh rate

60 Hz

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

16.7 million colours

Pixel pitch

0.2745 x 0.2745 mm

Pixel density

93 ppi

Horizontal scan range

30 - 115 kHz

Vertical scan range

48 - 100 Hz

Viewable size, horizontal

52.7 cm

Viewable size, vertical

29.6 cm

Display diagonal (metric)

60.47 cm

DDC/CI

Yes

Haze rate

25%

Surface hardness

3H

Colour gamut standard

NTSC, sRGB

sRGB coverage (typical)

110%

NTSC coverage (typical)

96%

Display sRGB

Yes

Performance

NVIDIA G-SYNC

No

AMD FreeSync

No

Component video sync

Separate sync, Sync-on-green (SOG)

Flicker-free technology

Yes

Multimedia

Number of speakers

2

RMS rated power

6 W

Built-in speaker(s)

Yes

Built-in camera

No

Design

Market positioning

Business

Product colour

Black

Front bezel colour

Black

Feet colour

Silver

Ports & interfaces

Built-in USB hub

Yes

USB hub version

3.2 Gen 2 (3.1 Gen 2)

USB upstream port type

USB Type-C

Number of USB Type-C upstream ports quantity

2

USB Type-A downstream ports quantity

4

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Yes

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

100 W

VGA (D-Sub) ports quantity

1

HDMI

Yes

HDMI ports quantity

1

HDMI version

1.4

DisplayPorts quantity

1

DisplayPort version

1.4

Audio output

Yes

Built-in KVM switch

Yes

KVM switch ports quantity

2

HDCP

Yes

HDCP version

1.4

Network

Ethernet LAN

Yes

Ergonomics

VESA mounting

Yes

Panel mounting interface

100 x 100 mm

Cable lock slot

Yes

Cable lock slot type

Kensington

Height adjustment

Yes

Adjustable height (max)

15 cm

Pivot

Yes

Pivot angle

-90 - 90°

Swivelling

Yes

Swivel angle range

-180 - 180°

Tilt adjustment

Yes

Tilt angle range

-5 - 35°

Picture-in-Picture

Yes

On Screen Display (OSD)

Yes

On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian

Number of OSD languages

21

Plug and Play

Yes

LED indicators

Operation, Stand-by

Power

Energy efficiency class (SDR)

C

Energy efficiency class (HDR)

Not available

Energy consumption (SDR) per 1000 hours

12 kWh

Power consumption (typical)

14.18 W

Power consumption (standby)

0.3 W

Power consumption (off)

0.3 W

Power consumption (PowerSave)

11.9 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power supply type

Internal

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

20 - 80%

Operating altitude

0 - 3658 m

Non-operating altitude

3658 - 12192 m

Weight & dimensions

Width (with stand)

540 mm

Depth (with stand)

232 mm

Height (with stand)

501 mm

Weight (with stand)

5.61 kg

Width (without stand)

540 mm

Depth (without stand)

56 mm

Height (without stand)

324 mm

Weight (without stand)

3.89 kg

Packaging data

Package width

615 mm

Package depth

139 mm

Package height

385 mm

Package weight

7.84 kg

Packaging content

Stand included

Yes

Cables included

AC, DisplayPort, HDMI, USB Type-C to USB Type-C

Manual

Yes

Sustainability

Sustainability certificates

ENERGY STAR, EPEAT

Doesn't contain

Mercury, PVC/BFR

Other features

HBR3 support

Yes

Picture-by-Picture (PbP)

Yes

Exterior finish type

Textured

Picture enhancement

SmartImage

Recyclable packaging material

100%

Regulatory Approvals

CB, CE Mark, TUV/GS, TUV Ergo, TCO Certified, UKCA, EMF, FCC, ICES-003

Heavy metals free

Hg (mercury)

Adaptive synchronisation

Yes

EasyRead mode

Yes

(cdm) Software / function

SmartControl

Compliance certificates

RoHS

Mean time between failures (MTBF)

70000 h

Recycling data

Post-consumer recycled plastic

85%
