Introduction

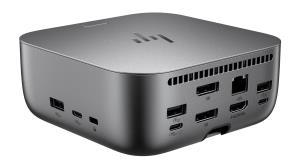

Work without interruptions with ultimate power delivery from the HP Thunderbolt 4 Ultra 180W G6 Dock. Manage, connect and power your ecosystem securely.

Features

• More Ports. More Flexibility.
• More ports means more capabilities. With a TBT4™, USB-C® DP Alt. Mode, HDMI, RJ-45, two USB-C®, two DisplayPorts™, and five USB-A ports, you can connect all your devices.
• Intuitive, compact design
• Stay in the know about device status updates with intuitive LED lighting and on-screen-display. Easily connect to your ports and declutter your desk with rear-facing USB-C® cable connectivity, all in a compact design.
• A full suite of manageability tools
• Empower your IT to manage and track your docks by product name, serial number, and MAC Address from anywhere with the time-saving, easy-to-use Electronic Tag (eTag) and HP CMSL management tools.
• Wired Intel® vPro®
• With Intel® vPro® Active Management Technology, authorized administrators can remotely access notebooks using wired connections, even if turned off, to make updates.
• 3-year limited warranty
• Get added peace of mind with a 3-year limited warranty that includes technical support, diagnostic services, and hardware replacement.
• Compatible with myHP
• Enable hardware and software innovations from HP with the myHP application. This single dashboard houses access to settings for your docking station and other devices.

Specifications

• Compatibility
• Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.
• Power
• 230 W external power adapter
• Cable length
• 1 m
• I/O Port location
• Front
• Ports
• 1 USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery)
• Resolution (maximum)
• Up to 8K
• LED
• Front LED bar: RGB LED (white, blue, amber, green, red); Power button: RGB LED (white, blue, amber, green, red)
• Compatible Operating Systems
• Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS
• Operating temperature range
• 0 to 35°C
• Operating temperature range
• 32 to 95°F
• Non-Operating Humidity Range
• 5 to 95% non-condensing
• Operating humidity range
• 10 to 90% non-condensing
• Sustainable impact specifications
• 35% post-consumer recycled plastic
• Dimensions (W x D x H)
• 12.1 x 12.1 x 4.95 cm
• Package dimensions (W x D x H)
• 39.6 x 17.1 x 9.5 cm
• Weight
• 790 g
• Package weight
• 1.14 kg
• Minimum System Requirements
• USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™); Thunderbolt™ 4 port
