Introduction

Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.

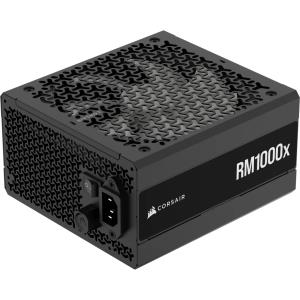

RMx SERIES
THE GOLD STANDARD OF POWER SUPPLIES

QUIET, DEPENDABLE, EFFICIENT
Our best-selling PSU, updated. This fully modular, low noise, Cybenetics Gold-certified power supply is ATX 3.1 compliant and ideal for delivering dependable power to today's top-performing PCs.

50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your PC, even under high-stress conditions.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

ATX 3.1 CERTIFIED
Be confident your PSU supports the latest sleep and hibernate modes and modern CPU and GPU requirements. ATX 3.1 compliance ensures full compatibility with modern components and power states.

FULLY MODULAR CONNECTORS
Connect only what you need using sleek embossed cables with low-profile combs to make installations a breeze.

Native 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

THE STRONG, SILENT TYPE

140mm LOW-NOISE FAN
A fluid dynamic bearing fan with magnetic dome structure keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

MANUAL FAN OVERRIDE KNOB
Want to get more air through the PSU or to exhaust some heat from your case? You can override the Zero RPM Mode and low-noise profile of the RMx Series with our manual fan override knob, increasing fan speed and airflow.

Power

Total power

1000 W

AC input voltage

100 - 240 V

AC input frequency

47 - 63 Hz

Input current

12 - 5 A

Maximum input current (@110V)

12 A

Maximum input current (@220V)

5 A

Combined power (+3.3V)

150 W

Combined power (+12V)

1000 W

Combined power (+5V)

150 W

Combined power (-12V)

9.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

25 A

Max output current (+12V)

83.3 A

Max output current (+5V)

25 A

Max output current (-12V)

0.8 A

Max output current (+5Vsb)

3 A

Ports & interfaces

Motherboard power connector

24-pin ATX

Number of SATA power connectors

11

Peripheral (Molex) power connectors (4-pin)

12

EPS power connector (8-pin)

Yes

Floppy drive power connector

1

PCI Express connector

Yes

Cabling type

Fully-Modular

Performance

80 PLUS certification

80 PLUS Gold

Purpose

PC

Power supply unit (PSU) form factor

ATX

ATX version

2.4

EPS version

2.92

Bearing technology

Rifle

Mean time between failures (MTBF)

100000 h

Design

Product colour

Black

Cooling type

Active

Fan diameter

14 cm

Number of fans

1 fan(s)

On/off switch

Yes

Certificates

Compliance certificates

RoHS

Weight & dimensions

Width

150 mm

Depth

160 mm

Height

86 mm

Weight

3.65 kg

Packaging data

Package type

Box

Logistics data

Warranty period

10 year(s)
