Introduction

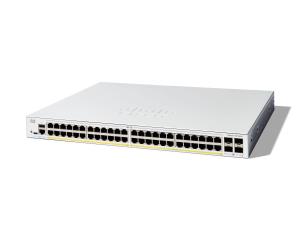

The Cisco Catalyst 1300-48P-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Y

Network

Networking standards

IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port mirroring

Yes

Flow control support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

Ethernet LAN data rates

1000 Mbit/s

VLAN support

Yes

Data transmission

Static route

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Security

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

HTTPS, SSH, SSL/TLS

MAC address filtering

Yes

SSH/SSL support

Yes

Multicast features

Multicast support

Yes

Design

Product colour

White

Housing material

Metal

Reset button

Yes

LED indicators

Yes

Performance

Processor frequency

1400 MHz

Internal memory

1024 MB

Flash memory

512 MB

Power

Power source

AC

Power supply included

Yes

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%
