Introduction

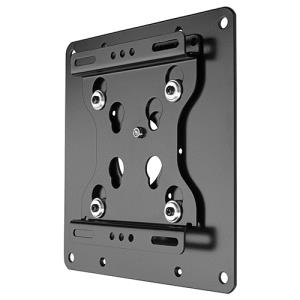

FSR1U is a perfect complement to any small flat panel digital signage or hospitality application, providing fast and flexible installation, ultra-low-profile installation depth and security for use in public spaces.

- Ultra-low-profile installation depth - only 0.75" (19 mm)
- Portrait or landscape mountable
- Chief's exclusive Q-LatchT Mounting System saves installation time
- Latch Extender provided for easy latch access with larger displays
- Supports wide range of VESA patterns for 10" to 32"+ displays

Mounting

Minimum screen size

25.4 cm (10")

Maximum weight capacity

20.4 kg

Maximum screen size

81.3 cm (32")

Mounting type

Wall

Minimum VESA mount

50 x 50 mm

Maximum VESA mount

200 x 200 mm

Panel mounting interface

50 x 50,75 x 75,100 x 100,200 x 100,200 x 200

Number of displays supported

1

Design

Product colour

Black

Weight & dimensions

Weight

1.36 kg
