Introduction

Bolt down solution for twin screens up to 86"

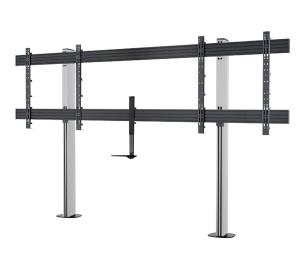

The BT8538 is a premium bolt-down mounting solution designed to mount two XL screens side by side, ideal for video conferencing applications. The stand features a small footprint, suitable for retail applications with limited floor space, such as shop windows for close-to-wall displays. Integrated cable management hides cables for a tidy installation, and all interface arms include level adjustment screws for easy screen alignment.

Mounting

Minimum screen size

177.8 cm (70")

Maximum weight capacity

100 kg

Maximum screen size

2.18 m (86")

Mounting type

Floor

Maximum VESA mount

1000 x 800 mm

Panel mounting interface

1000 x 800 mm

Number of displays supported

2

Ergonomics

Adjustable shelves

Yes

Cable management

Yes

Design

Housing material

Metal

Product colour

Black, Silver

Easy to install

Yes

Weight & dimensions

Width

3000 mm

Depth

240 mm

Height

1835 mm

Packaging content

Mounting kit

Yes

Manual

Yes

Other features

Compliance certificates

cTUVus

Certification

TUV

Logistics data

Harmonized System (HS) code

94039010
