Introduction

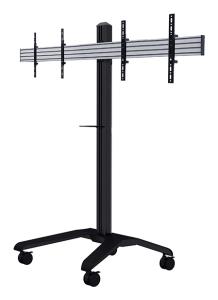

The BT8514 is a premium mounting solution designed to mount two screens side by side for video conferencing applications. The Trolley is supplied with a shelf for VC cameras that can be fitted above or below the screen while integrated cable management hides cables for a smart installation in any environment. Nonmarking braked castors allow the trolley to be relocated easily and safely without marking floor surfaces. Screw-in levelling feet for freestanding applications are available separately

Mounting

Minimum screen size

99.1 cm (39")

Maximum weight capacity

80 kg

Maximum weight capacity (per display)

40 kg

Maximum screen size

116.8 cm (46")

Mounting

Screws

Mounting type

Floor

Maximum VESA mount

400 x 400 mm

Panel mounting interface

400 x 400 mm

Number of displays supported

2

Ergonomics

Cable management

Yes

Design

Product colour

Black

Orientation

Landscape

Easy to install

Yes

Weight & dimensions

Width

1504 mm

Depth

863 mm

Height

1905 mm

Packaging data

Quantity per pack

1 pc(s)

Logistics data

Harmonized System (HS) code

94039010
