Introduction

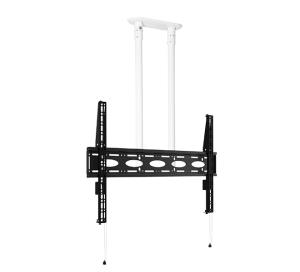

Designed to ceiling mount screens over 65", the BT8448 is an extra-large ceiling mount which is available with a choice of four different drop lengths; 1m, 1.5m, 2m and 3m. The twin pole design and heavy duty steel provides strength and rigidity, allowing for a maximum load of up to 130kg. Other great features include post installation screen alignment and height adjustment screws to help level the screen once mounted. Available with a choice of Black or Chrome poles.

Mounting

Minimum screen size

165.1 cm (65")

Maximum weight capacity

130 kg

Maximum screen size

3.05 m (120")

Suitable for computer monitor

Yes

Maximum VESA mount

1000 x 600 mm

Panel mounting interface

1000 x 600 mm

Number of displays supported

1

Mounting type

Ceiling

Ergonomics

Cable management

Yes

Ceiling mounting tube length (max)

1559.5 cm

Maximum distance to ceiling

148 cm

Design

Product colour

Black, White

Housing material

Metal

Technical details

Quantity per pack

1 pc(s)

Packaging content

Manual

Yes

Mounting kit

Yes

Weight & dimensions

Width

1030 mm

Depth (max)

14.6 cm

Height

1495 mm

Arm length

155.9 cm
