Introduction

UCE60 lets you locate your USB device or hub up to 60m (198 ft) from you computer, overcoming the typical USB cable limitation. It conditions the USB signals to communicate up to 60m using low-cost Cat 5/Cat 5e/Cat 6 cable.

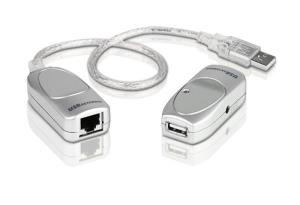

1x Local Unit (1 ft USB Cable attached)
1x Remote Unit

Features

Type

Transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

60 m

Product colour

Grey

Material

Plastic

USB 2.0 ports quantity

2

Transmitter

Transmitter local keyboard/mouse port type

USB

RJ-45 ports quantity (transmitter)

1

Receiver

Receiver local keyboard/mouse port type

USB

RJ-45 ports quantity (receiver)

1

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Weight & dimensions

Transmitter width

6.3 cm

Transmitter depth

3.1 cm

Transmitter height

2.19 cm

Transmitter weight

20 g

Receiver width

6.3 cm

Receiver depth

3.1 cm

Receiver height

2.19 cm

Receiver weight

30 g

Packaging data

Package width

116 mm

Package depth

160 mm

Package height

239 mm

Package weight

185 g

Technical details

Weight

61 g

Logistics data

Master (outer) case net weight

1.22 kg

Master (outer) case width

330 mm

Master (outer) case length

490 mm

Master (outer) case height

340 mm

Master (outer) case gross weight

4.64 kg

Products per master (outer) case

20 pc(s)
