Introduction

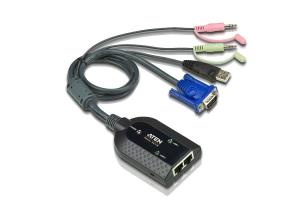

The KA7178 KVM Adapter Cable connects the KVM switch to the video, USB and audio ports of the target computer. In addition to Virtual Media support, it provides two Cat 5e/6 connectors, allowing a computer to connect to two ALTUSEN Matrix KVM switches. This allows consoles on different switches access to the same computer.
1x KA7178 KVM Adapter Cable

Performance

Product colour

Multicolour

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA

Console port

RJ-45

Connector 1

2 x RJ-45

Connector 2

1 x USB Type A, 1 x HDB-15, 2 x Mini Stereo

Connector 1 gender

Female

Connector 2 gender

Male

Material

Plastic

Packaging data

Weight

150 g

Package width

42 mm

Package depth

124 mm

Package height

129 mm

Package weight

190 g

Logistics data

Master (outer) case net weight

6 kg

Master (outer) case width

270 mm

Master (outer) case length

470 mm

Master (outer) case height

296 mm

Master (outer) case gross weight

8.74 kg

Products per master (outer) case

40 pc(s)

Other features

Depth

91 mm

Height

21.2 mm

Width

56 mm
