Introduction

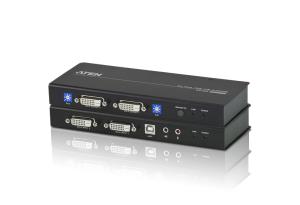

The CE604 is a DVI Dual View USB based KVM Extender that features Dual View functionality, which enables the video output to seamlessly display on two monitors. With RS-232 serial functionality, it allows access to a computer system from a remote console up to 60 m away. The CE604 is built for control and security purposes, and is targeted towards financial and industrial markets.
1x CE604L (Local Unit)
1x CE604R (Remote Unit)
1x 2L-7D02U USB DVI KVM Cable Set (1.8m)
1x LIN5-26W-W11G DVI Cable (1.8m)
2x 0AD8-1605-24M1 Power Adapters
1x Mounting Kit
1x User Instructions
Features
Type
Transmitter & receiver
Connectivity technology
Wired
Maximum transfer distance
60 m
Cable types supported
Cat5,Cat5e
Rack mounting
Y
Maximum digital resolution
1920 x 1200 pixels
Supported resolutions
1920 x 1200, 1024 x 768
Product colour
Black
Material
Metal
LED indicators
Link, Power
Transmitter
Transmitter video port type
DVI-D
Transmitter local keyboard/mouse port type
USB
RJ-45 ports quantity (transmitter)
2
Receiver
Receiver local video port type
DVI-D
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
2
Power
AC adapter output voltage
5.3 V
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%
Weight & dimensions
Transmitter width
20.2 cm
Transmitter depth
8.53 cm
Transmitter height
2.5 cm
Transmitter weight
490 g
Receiver width
20.2 cm
Receiver depth
8.67 cm
Receiver height
2.5 cm
Receiver weight
490 g
Packaging data
Package width
98 mm
Package depth
325 mm
Package height
210 mm
Package weight
2.06 kg
Technical details
Weight
1.99 kg
Packaging content
Manual
Y
Quick installation guide
Y
Logistics data
Master (outer) case net weight
9.95 kg
Master (outer) case width
342 mm
Master (outer) case length
512 mm
Master (outer) case height
232 mm
Master (outer) case gross weight
11 kg
Products per master (outer) case
5 pc(s)
