Introduction

The ATEN DisplayPort rev.1.2 Cable provides high-definition connectivity and advanced auxiliary channeling. Our DisplayPort cables support long distance connections by safeguarding transmission quality and image clarity. We offer DisplayPort cables at lengths of 3 and 4.6 meters supporting resolutions up to 4K UHD (3840 x 2160 @ 60Hz).

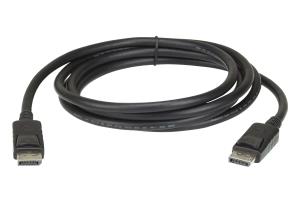

1x 2L-7D04DP 4.6 m DisplayPort rev.1.2 Cable

Features

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Connector contacts plating

Nickel

DisplayPort version

1.2

Maximum resolution

3840 x 2160 pixels

Cable length

4.6 m

Connector 1

DisplayPort

Connector 2

DisplayPort

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Black

Cable material

Copper

Cable shielding

Aluminum mylar foil

Magnetically shielded

Y

Jacket material

Polyvinyl chloride (PVC)

AWG wire size

26

Data transfer rate

21.6 Gbit/s

Plug and Play

Y

Operational conditions

Operating temperature (T-T)

0 - 80 °C

Packaging data

Cable diameter

8 mm

Weight

350 g

Quantity per pack

1 pc(s)

Package weight

350 g

Logistics data

Master (outer) case net weight

8.75 kg

Master (outer) case width

330 mm

Master (outer) case length

450 mm

Master (outer) case height

280 mm

Master (outer) case gross weight

9.33 kg

Products per master (outer) case

25 pc(s)
