Introduction

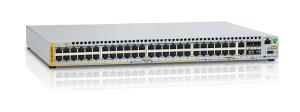

The Allied Telesis AT-x310-50FP features 48 Fast Ethernet ports with 2 Gigabit uplinks and 2 stacking ports.
The ability to stack up to 4 units simplifies management in high port-density installations, and Power over Ethernet (PoE+) can supply power to Enterprise edge devices such as IP phones.
Management features
Quality of Service (QoS) support
Y
System event log
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2
Console port
RJ-45
Power connector
DC-in jack
Network
Networking standards
IEEE 802.2,IEEE 802.3,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Auto MDI/MDI-X
Y
Data transmission
Switching capacity
17.6 Gbit/s
Throughput
10.1 Mpps
MAC address table
16000 entries
Multicast features
Multicast support
Y
Design
Rack mounting
Y
Form factor
1U
Product colour
Grey
LED indicators
Y
Safety
UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Certification
UL, cUL
Performance
Flash memory
64 MB
Power
AC input voltage
90 - 260 V
AC input frequency
47/63 Hz
Power consumption (typical)
61 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet plus (PoE+) ports quantity
12
Total Power over Ethernet (PoE) budget
307 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Heat dissipation
349 BTU/h
Weight & dimensions
Width
440 mm
Depth
360 mm
Height
44 mm
Weight
5.8 kg
