Introduction

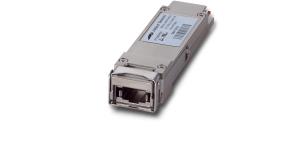

Allied Telesis QSFP Series pluggable optical modules offer the latest industry-standard 40 Gigabit Ethernet connectivity in a flexible, small form factor.
These hot-swappable transceiver modules simply plug into any compatible Allied Telesis product.
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
10300 Mbit/s
Interface type
QSFP+
Multi-mode fiber (MMF) supported
Y
Fiber optic connector
MPO
SFP transceiver standard
SR4
Maximum transfer distance
150 m
Wavelength
850 nm
Tx power (min)
-7.6 dBmW
Tx power (max)
2.4 dBmW
Networking standards
IEEE 802.3ba
Digital Diagnostics Monitoring (DDM)
Y
Fiber ports quantity
1
Features
Product colour
Grey
Hot-swap
Y
Power
Power consumption (typical)
1.5 W
Power over Ethernet (PoE)
N
Operational conditions
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 80 °C
Operating relative humidity (H-H)
0 - 85%
Packaging data
Number of products included
1 pc(s)
Technical details
Sustainability certificates
RoHS
Other features
RX sensitivity
-3 dB
