Industrial Managed Switch With 8 10BASE-T/100BASE-TX ports plus x 100BASE-FX Optical Ports

Introduction

Fast Ethernet Layer 2 Industrial Managed Switch

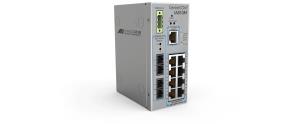

The Allied Telesis IA810M switch is a cost-effective solution for industrial environments. It provides enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security.

- A wide operating temperature range allows for use in harsh and demanding conditions, such as those found in industrial and outdoor deployment.
- High performance ensures the delivery of time-sensitive data, with Quality of Service (QoS) allowing the prioritization of important traffic.
- Industrial automation support is provided with EtherNet/IP for integrating industrial applications and manufacturing automation devices with standard data network systems.

- Static Link Aggregation
- Power Save mode
- Flow control
- Access Control Lists
- EPSR aware

Management features

Switch type

Managed

Switch layer

L2

Quality of Service (QoS) support

Y

Web-based management

Y

System event log

Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Fiber optic connector

SC

Network

10G support

N

Copper ethernet cabling technology

10BASE-T,100BASE-TX

Port mirroring

Y

Flow control support

Y

Link aggregation

Y

Broadcast storm control

Y

Spanning tree protocol

Y

Head-of-line (HOL) blocking

Y

VLAN support

Y

Virtual LAN features

Tagged VLAN,Port-based VLAN

Number of VLANs

256

Optical fiber

Fiber ethernet cabling technology

100BASE-FX

Data transmission

Switching capacity

2 Gbit/s

Forwarding rate

1.488 Mpps

MAC address table

8000 entries

Security

DHCP features

DHCP client

Access Control List (ACL)

Y

IGMP snooping

Y

Static port security

Y

BPDU filtering/protection

Y

Design

Product colour

Grey

International Protection (IP) code

IP30

Safety

EN60950-1

Electromagnetic compatibility

EN55024, FCC 15 B, ICES-003 6, VCCI A, EN55032 A

Certification

CE, FCC, ICES, UL, VCCI, RoHS, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC60068-2-27, IEC60068-2-6, IEC60068-2-32

Performance

Buffer size

512 KB

Power

Power consumption (max)

7.5 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

N

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

5 - 95%

Heat dissipation

25.59 BTU/h

Weight & dimensions

Width

58 mm

Depth

100 mm

Height

130 mm

Weight

670 g
