AG NEOVO

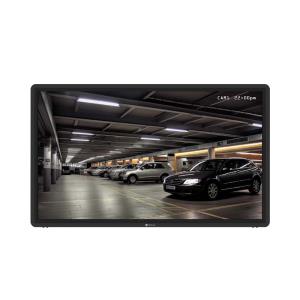

Large Format Monitor - Ttn4301 - 43in - 3840x2160 (uhd 4k)

Large Format Monitor - Ttn4301 - 43in - 3840x2160 (uhd 4k)

Part Number:
TTN4301
Stock:
Ask a question

Display

Panel type

IPS

Display diagonal

109.2 cm (43")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

450 cd/m²

HD type

4K Ultra HD

Touchscreen

No

Native aspect ratio

16:9

Response time

5 ms

Contrast ratio (typical)

1200:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Pixel pitch

0.245 x 0.245 mm

Horizontal scan range

15 - 135 kHz

Vertical scan range

24 - 86 Hz

Haze rate

1%

Surface hardness

3H

Glass thickness

3.2 mm

Ports & interfaces

HDMI ports quantity

1

HDMI version

2.0

HDMI input ports quantity

1

DVI port

Yes

DVI-D ports quantity

1

VGA (D-Sub) input ports

1

USB port

Yes

USB ports quantity

1

USB version

2.0

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Wi-Fi

No

Composite video in

1

Composite video out

1

Number of speaker outputs

1

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

24 W

Design

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal

Product colour

Black

VESA mounting

Yes

Panel mounting interface

400 x 200 mm

Anti-glare screen

Yes

Performance

Purpose

Retail

Operating hours (hours/days)

24/7

Power

Power consumption (typical)

82 W

Power consumption (standby)

0.5 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

82 kWh

AC input voltage

100-240 V

AC input frequency

50-60 Hz

Energy efficiency scale

A to G

Weight & dimensions

Display width

1002 mm

Display depth

84.7 mm

Display height

591.6 mm

Display weight

19 kg

Packaging data

Package width

1120 mm

Package depth

180 mm

Package height

710 mm

Package weight

22.4 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-10 - 60 °C

Storage relative humidity (H-H)

10 - 80%
