DESCRIPTION

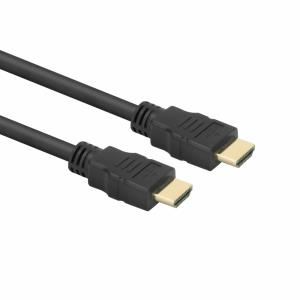

This HDMI 4K cable supports 2160p@30Hz resolutions. Making it compatible with the resolutions supported by the following HDMI versions: HDMI 2.0, HDMI 1.4a, HDMI 1.4, HDMI 1.3a and HDMI 1.3.

Features

Cable length

15 m

Connector 1

HDMI Type A (Standard)

Connector 2

HDMI Type A (Standard)

Connector 1 gender

Male

Connector 2 gender

Male

Connector 1 form factor

Straight

Connector 2 form factor

Straight

Product colour

Black

HDMI version

2.0

Supported graphics resolutions

1920 x 1080 (HD 1080), 3840 x 2160

Audio Return Channel (ARC)

Yes

HDCP

Yes

HDCP version

2.2

Data transfer rate

18 Gbit/s

High Dynamic Range (HDR) supported

Yes

Maximum refresh rate

30 Hz

AWG wire size

26

Connector contacts plating

Gold

Cable material

Copper

Cable jacket material

Polyvinyl chloride (PVC)

Shield material

Aluminium

Bending radius (min)

4 cm

Colour sampling

4:2:0

Operational conditions

Operating temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

45 - 65%

Weight & dimensions

Cable diameter

8 mm

Connector 1 dimensions (WxDxH)

48.34 x 39.31 x 9.91 mm

Connector 2 dimensions (WxDxH)

48.34 x 39.31 x 9.91 mm
