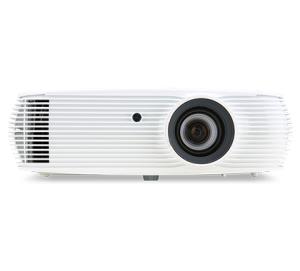

Projector
Supported aspect ratios
4:3,16:10,16:9
Projection distance
1 - 7.7 m
Projection distance (wide)
1.19 - 1.54 m
Projector brightness
4500 ANSI lumens
Projection technology
DLP
Projector native resolution
WXGA (1280x800)
Contrast ratio (typical)
20000:1
Native aspect ratio
16:10
Number of colours
1.073 billion colours
Projector brightness (economic mode)
3600 ANSI lumens
Keystone correction, horizontal
-20 - 20°
Keystone correction, vertical
-20 - 20°
Horizontal synchronization (min)
15 kHz
Horizontal synchronization (max)
100 kHz
Vertical synchronization (min)
0.024 kHz
Vertical synchronization (max)
0.12 kHz
Light source
Light source type
Lamp
Service life of light source
4000 h
Service life of light source (economic mode)
10000 h
Lamp type
UHP
Lamp power
240 W
Lamps quantity
1 lamp(s)
Lens system
Focus
Manual
Focal length range
2.5 - 2.782 mm
Digital zoom
2x
Optical zoom
1.3x
Video
Analog signal format system
NTSC 3.58,NTSC 4.43,PAL B,PAL D,PAL G,PAL H,PAL I,PAL M,PAL N,SECAM B,SECAM D,SECAM G,SECAM K,SECAM K1,SECAM L
Full HD
N
3D
Y
Supported video modes
480i,480p,576i,576p,720p,1080i,1080p
Ports & interfaces
HDMI version
1.4
USB 2.0 ports quantity
1
Audio (L/R) in
1
Audio (L/R) out
1
Serial interface type
RS-232
VGA (D-Sub) ports quantity
2
HDMI ports quantity
2
Composite video in
1
DVI port
N
DC-in jack
Y
Network
Ethernet LAN
Y
Ethernet LAN (RJ-45) ports
1
Wi-Fi
N
Storage
Card reader integrated
N
Features
Noise level (economic mode)
24 dB
Noise level
31 dB
Multimedia
Built-in speaker(s)
Y
RMS rated power
16 W
Number of built-in speakers
1
Document formats supported
DOC,DOCX,PDF,PPT,PPTX,XLS,XLSX
Design
Market positioning
Presentation
Product type
Large venue projector
Product colour
White
Placement
Ceiling, Wall
Display
Built-in display
N
Power
Power source
AC
Power consumption (typical)
290 W
Power consumption (PowerSave)
205 W
AC input voltage
100 - 240 V
AC adapter output voltage
230 V
Software
Windows operating systems supported
Y
Mac compatibility
Y
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
315 mm
Depth
214 mm
Height
103 mm
Weight
2.73 kg
Package width
400 mm
Package depth
288 mm
Package height
155 mm
Package weight
3.6 kg
Packaging content
Remote control included
Y
Remote control type
IR
Batteries included
Y
Cables included
AC, USB
Carrying case
Y
Quick start guide
Y
Technical details
Display diagonal (metric)
223 cm
Other features
RS-232 ports
1
